    Do you need something special?
    If you need something other than our featured products, check out one of our catalogs here or send us an email, a fluidtech advisor will contact you.
    remove_red_eyeSee catalogs

    Industry Category

    AR10 GENERAL PURPOSE AIR/WATER 200
  • Application: Air, water, agricultural spray solutions, and other diluted chemicals. Good resistance to heat, abrasion, and weathering.
  • Construction:
  • Tube-Black, limited oil resistant synthetic rubber
  • Reinforcement - Synthetic yarn
  • Cover - Smooth red, abrasion, weather and ozone resistant rubber
  • Branding - FLEXTRAL AR10-100 1” (25.4mm) GENERAL PURPOSE AIR/WATER 200 PSI MAX WP
  • Temperature Range 35ºC to +80ºC ( -30ºF to +180ºF)

    • searchVer ficha técnica
    AR11 BLACK 200 GENERAL PURPOSE AIR/WATER
  • Application: For a wide range of heavy duty industrial, construction, and agricultural water discharge applications in which a heavy duty rubber water hose is needed
  • Construction:
  • Tube - Black, limited oil resistant synthetic rubber
  • Reinforcement - Synthetic yarn
  • Cover - Smooth black, abrasion and weather resistant rubber
  • Branding - FLEXTRAL AR11-100 1” (25.4mm) GENERAL PURPOSE AIR/WATER 200 PSI MAX WP
  • Temperature Range: 35ºC to +80ºC (-30ºF to +180ºF)

    • searchVer ficha técnica
    AR15 “HAMMERHEAD” JACKHAMMER
  • Application: Proven to be an excellent performer in the industrial, rental and construction industries. Tube is designed to accommodate in line oil misting.
  • Construction:
  • Tube - Black, limited oil resistant synthetic rubber Reinforcement - Synthetic yarn
  • Reinforcement - Synthetic yarn
  • Cover - Smooth cut and abrasion resistant
  • Branding - FLEXTRAL AR15-075 3/4” (19.1mm) HAMMERHEAD AIR/WATER 300 PSI MAX WP
  • Temperature Range: 35ºC to +80ºC (-30ºF to +180ºF)

    • searchVer ficha técnica
    AR20 GENERAL PURPOSE AIR/WATER 300
  • Application: Air, water, agricultural spray solutions, and other diluted chemicals. High resistance to heat, abrasion, and weathering
  • Construction:
  • Tube - Black, limited oil resistant synthetic rubber
  • Reinforcement - Synthetic yarn
  • Cover - Smooth red, abrasion, weather and ozone resistant rubber
  • Branding - FLEXTRAL AR20-100 1” (25.4mm) GENERAL PURPOSE AIR/WATER 300 PSI MAX WP
  • Temperature Range: 35ºC to +80ºC ( -30ºF to +180ºF)

    • searchVer ficha técnica
    AR30 MULTI-PURPOSE
  • Application: A premium quality, multi-purpose hose for industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where oil resistance is needed. Non conductive, minimum electrical resistance greater than (1) megohm per inch of hose length at 1000 V DC.
  • Construction:
  • Tube - Black nitrile, RMA class A (high oil resistance)
  • Reinforcement - Synthetic yarn
  • Cover - Red NBR blend, RMA class B
  • Branding - FLEXTRAL AR30 100 1” (25.4mm) ORCT NON-CONDUCTIVE OIL RESISTANT 300 PSI MAX WP
  • Temperature Range: 29ºC to +88ºC (-20ºF to +190ºF)

    • searchVer ficha técnica
    AR32 “ARCTIC AIR” COLD TEMP
  • Application: The AR32 “Arctic Air“ Cold Temp hoses are manufactured to be extremely tough and flexible at very low temperatures. The superior physical properties and design of the hose makes it outperform other general purpose PVC and rubber hoses in cold weather air tool applications.
  • Construction:
  • Tube - High grade, low temperature PVC compound
  • Reinforcement - High tensile strength polyester yarn
  • Cover - High grade, low temperature PVC compound
  • Temperature Range: 40ºC to +65ºC (-40ºF to +150ºF)

    • searchVer ficha técnica
    AR40 300 PSI PVC AIR HOSE
  • Application: Outdoor air and water general purpose hose for use in cold weather where flexibility is required. Ideal for in plant applications where flexibility and handling in tight spaces is required.
  • Construction:
  • Tube - High grade, low temperature PVC compound
  • Reinforcement - High tensile strength polyester yarn
  • Cover - High grade, low temperature PVC compound
  • Temperature Range: 3ºC to +65ºC (+25ºF to +150ºF)

    • searchVer ficha técnica

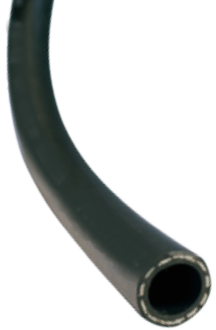

    J3 RUBBER COVER PUSH-ON 300 PSI
  • Application: Petroleum based hydraulic fluids, gasoline, water, diesel fuels, and lubricating oils. Non conductive, minimum electrical resistance greater than (1) megohm per inch of hose length at 1000 V DC
  • Construction:
  • Tube - High oil resistant synthetic rubber - RMA class A (high oil resistance)
  • Reinforcement - Synthetic fiber
  • Cover - Synthetic rubber, oil, abrasion, and UV resistant; MSHA approved
  • Branding - FLEXTRAL GRIP-LOC J3-12 3/4” 300 PSI MAX WP MSHA 2G-IC MADE IN USA
  • Temperature Range: -40°C to +88°C (-40°F to + 190°F)

    • searchVer ficha técnica
    J4 RUBBER COVER PREMIUM PUSH-ON HOSE 350 PSI
  • Application: Petroleum based hydraulic fluid, diesel fuel, lubrication oil, gasoline, air, water, and antifreeze coolants
  • Construction:
  • Tube - High oil resistant synthetic rubber - RMA class A (high oil resistance)
  • Reinforcement - Synthetic fiber
  • Cover - Synthetic rubber, oil, abrasion, and UV resistant; MSHA approved
  • Branding - FLEXTRAL GRIP-LOC J4-12 3/4” 350 PSI MAX WP AIR/WATER 200 PSI MAX WP
  • Temperature Range: Oil/Air: -40°C to +125°C (-40°F to +257°F) Water: +100°C (+212°F)

    • searchVer ficha técnica
    AR49 POLYURETHANE AIR HOSE
  • Application: For use with pneumatic air tools such as roofing nailers, sanders and impact wrenches. Light weight, with excellent abrasion resistance and specially designed for optimum kink resistance
  • Construction:
  • Tube - Polyurethane
  • Reinforcement - High tensile strength yarn
  • Cover - Lime green polyurethane
  • Branding - FLEXTRAL AR49-025 1/4” POLYURETHANE AIR HOSE 250 PSI MAX WP
  • Temperature Range: -40ºC to +74ºC (-40ºF to +165ºF)

    • searchVer ficha técnica
    AR55 RECOIL HOSE ASSEMBLIES
  • Application: Self storing, coiled tube assemblies. Air lines for assembly applications. Suitable for low temperature. Automotive repair, body shops, car wash, carwash soap applications. Pneumatic airlines on machinery. Manufacturing air tool lines. Suitable for water, fluids, and some chemicals. *Not suitable for brake fluids.
  • Construction:
  • Tube/Cover - Ether based polyurethane
  • Fittings - Permanently crimped male brass swivel NPT ends. Bend restrictors over fittings prevents scratches and scuffs.
  • Temperature Range: 40ºC to +79ºC (-40ºF to +175ºF)

    • searchVer ficha técnica
    AR60 WIRE REINFORCED AIR
  • Application: High pressure air service for mining, construction, rental and industrial use. More resistant to external abuse than textile air hose.
  • Construction:
  • Tube - Black; oil mist resistant synthetic rubber
  • Reinforcement - Layers of high tensile steel wire
  • Cover - Yellow gouge resistant synthetic rubber with red stripe
  • Branding - FLEXTRAL AR60-200 2” WIRE REINFORCED AIR HOSE 600 PSI MAX WP
  • Temperature Range: 40ºC to +85ºC (-40ºF to +185ºF)

    • searchVer ficha técnica
    AR61 WIRE REINFORCED AIR - HTHD
  • Application: High temperature, heavy duty, high pressure air hose for mining, construction, rental, and industrial use. Extreme abrasion resistance for the toughest applications
  • Construction:
  • Tube - Black; oil and heat resistant synthetic rubber
  • Reinforcement - Layers of high tensile steel wire
  • Cover - Black; abrasion, weathering, and oil resistant carboxylated nitrile
  • Branding - FLEXTRAL AR61-100 1” WIRE REINFORCED AIR - HEAVY DUTY 600 PSI MAX WP
  • Temperature Range: -30ºC to +149ºC (-22ºF to +300ºF)

    • searchVer ficha técnica
    AR65 EXTRA SERVICE 400 AIR
  • Application:A premium quality mining, construction, and industrial hose
  • Construction:
  • Tube - Oil mist resistant black synthetic rubbe
  • Reinforcement - Synthetic yarn
  • Cover - Yellow abrasion resistant rubber with blue stripe
  • Branding - FLEXTRAL AR65-100 1” EXTRA SERVICE AIR/WATER 400 PSI MAX WP
  • Temperature Range: -35ºC to +82ºC (-38ºF to +180ºF)

    • searchVer ficha técnica
    AR67 CONTRACTORS 300 AIR
  • Application: For construction, mining, and industrial use.
  • Construction:
  • Tube - Oil mist resistant black synthetic rubber
  • Reinforcement - Synthetic yarn
  • Cover - Yellow abrasion resistant rubber with green stripe
  • Branding - FLEXTRAL AR67-100 1” CONTRACTORS AIR/WATER 300 PSI MAX WP
  • Temperature Range: -30ºC to +82ºC (-30ºF to +180ºF)

    • searchVer ficha técnica
    MS20 YELLOW MINE SPRAY HOSE
  • Application: Mine Spray hose is designed to withstand the toughest working environment. Wherever there is a severe application in mining, underground mining, oilfields, steel mills, and scrap yards, Flextral Mine Spray hose is ideal. It is made for air and water applications.
  • Construction:
  • Tube - Synthetic rubber
  • Reinforcement - High tensile steel wire
  • Cover - Yellow, perforated synthetic rubber; MSHA
  • Branding - FLEXTRAL 1/2” HEAVY DUTY AIR/WATER 1000 PSI WP MSHA
  • Temperature Range: -35°C to +100°C (-31°F to +212°F)

    • searchVer ficha técnica
    AR11 CONTRACTORS WATER
  • Application: For a wide range of heavy duty industrial, construction, and agricultural water discharge applications in which a heavy duty rubber water hose is needed.
  • Construction:
  • Tube - Black, limited oil resistant synthetic rubber
  • Reinforcement - Synthetic yarn
  • Cover - Smooth black, abrasion, and weather resistant rubber
  • Branding - FLEXTRAL AR11-100 1” (25.4mm) GENERAL PURPOSE AIR/WATER 200 PSI MAX WP
  • Temperature Range: -35ºC to +80ºC (-30ºF to +180ºF)

    • searchVer ficha técnica

    Categoría Alimentos

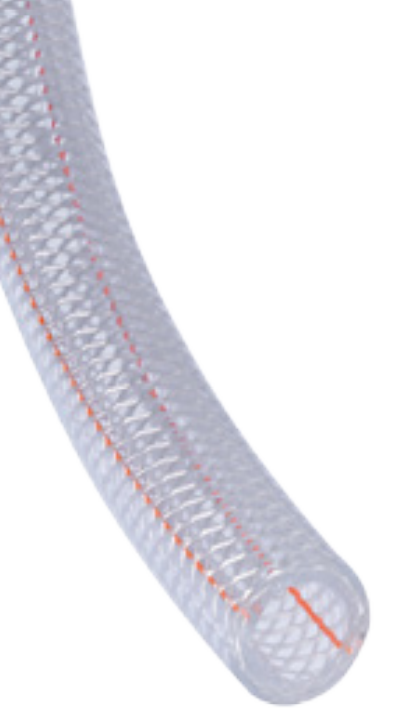

    AR41 FOOD GRADE PVC CLEARBRAID
  • Application: A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications
  • Construction: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF, UL, RoHS, and USP Class VI criteria
  • Reinforcement - Spiraled polyester yarn
  • Temperature Range: -4ºC to +65ºC (+25ºF to +150ºF)

    • searchVer ficha técnica

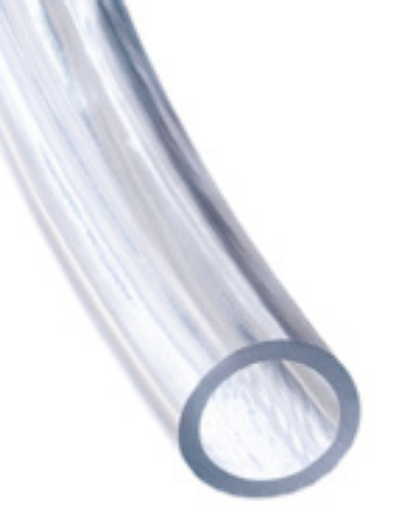

    AR44 CLEAR FOOD GRADE PVC
  • Application:Utility grade non-toxic clear food grade PVC tubing for general use applications.
  • Construction: Clear PVC compound formulated with ingredients in compliance with applicable FDA and RoHS requirements
  • Temperature Range: -4ºC to +65ºC (+25ºF to +150ºF)

    • searchVer ficha técnica

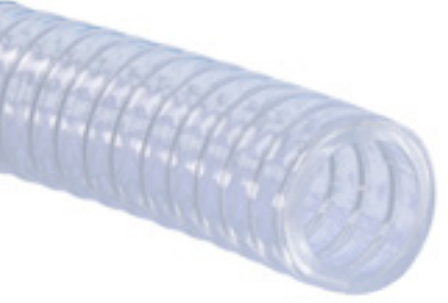

    AR45 FOOD GRADE PVC
  • Application:Standard wall food and beverage grade vacuum/transfer hose with rated working pressures.
  • Construction:Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA
  • Tube & Cover: - Clear smooth PVC. NSF-51 & NSF-61 certified material
  • Reinforcement: - High tensile helix
  • Temperature Range: -4ºC to +65ºC (+25ºF to +150ºF)

    • searchVer ficha técnica

    Categoría Quimica

    CH10 HIGH-CHEM
  • Application:Recommended for tank truck, barge, ship, chemical processing, in plant, blenders, and tank storage. Transfer for a variety of chemical products. Flexible with an extra tough cover to survive the most extreme applications.
  • Construction
  • Tube:- UHMWPE backed with a layer of rubber
  • Reinforcement: - Synthetic yarn with a double wire helix
  • Cover - Green EPDM
  • Temperature Range:-40°C to +80°C (-40°F to +180°F)
    Max. temperature limit of 180°F for most chemicals

    • searchVer ficha técnica
    CH12 HIGH-CHEM CORRUGATED
  • Application:An extremely flexible suction and discharge hose designed to handle commonly used acids, chemical, and solvents as well as food, pharmaceutical, and sanitary materials. This hose incorporates a dual wire helix that provides full suction capability, superior kink resistance, minimal force-to bend and a path to conduct a static electrical charge to ground.
  • Construction
  • Tube: - UHMWPE backed with a layer of rubber
  • Reinforcement: - Multiple textile plies with dual wire helix
  • Cover - Green EPDM; corrugated wrapped finish
  • Branding - CH12-100 1” HIGH-CHEM CORRUGATED 250 PSI MAX WP
  • Temperature Range:-40°C to +121°C (-40°F to +250°F)

    • searchVer ficha técnica
    CH14 CHEM-TRAL CRUSH RESISTANT
  • Application:An extremely flexible suction and discharge hose designed to handle many commonly used acids, chemicals, and solvents. This hose incorporates a dual monofilament helix that provides full suction capability with superior crush and kink resistance, allowing the hose to return to its original shape.
  • Construction
  • Tube: - Tan modified cross-linked polyethylene (MXLPE)
  • Reinforcement: - Multiple textile plies with dual monofilament helix and dual static wires
  • Cover - Black EPDM; corrugated wrapped finish
  • Branding - FLEXTRAL CH14-075 3/4” CHEM-TRAL CRUSH RESISTANT 200 PSI MAX
  • Temperature Range:-40°C to +121°C (-40°F to +250°F)

    • searchVer ficha técnica
    CH15 CHEM-TRAL
  • Application:Recommended for tank truck, barge, ship, chemical processing, plant, blenders, and tank storage. Transfer for a variety of chemical products. Flexible with an extra tough cover to survive the most extreme applications. Hose may be cleaned by using open-end steam up to 50 psi or in bath containing 10% sodium hydroxide (NaOH), up to 212°F (100°C).
  • Construction
  • Tube: - Modified cross-linked polyethylene (MXLPE)
  • Reinforcement: - Synthetic yarn with a double wire helix
  • Cover - Black corrugated EPDM
  • Branding - - CH15-150 1 1/2” MODIFIED XLPE CHEM-TRAL 250 PSI MAX WP
  • Temperature Range:-40°C to +121°C (-40°F to +250°F)

    • searchVer ficha técnica
    CH30 WEED SPRAY
  • Application:PVC spray hose used for agricultural spraying, pest spraying, nursery spraying and wash-down applications. Ribbed PVC cover minimizes drag resistance. Long standard one piece lengths are available for use on reels. Chemical resistant PVC is suitable for spraying of “wettable” powder type chemicals.
  • Construction
  • Tube:- Yellow PVC
  • Reinforcement: - High tensile strength yard, braided
  • Cover - Yellow ribbed PVC
  • Branding - FLEXTRAL CH30-075 AG SPRAY HOSE 3/4” 800 PSI MAX WP
  • Temperature Range:(-5°C to +65°C) -25°F to +150°F

    • searchVer ficha técnica
    CP20 COMPO CHEM HOSE PG
  • Application:Extremely flexible, easy to handle. FLEXTRAL CP20 is a general purpose hose for the transfer of a wide variety of chemicals under suction or pressure. It is used in such applications as transfer for rail and road tanker loading and unloading, storage tank and in-plant applications. All hoses are 100% aromatic resistant, antistatic and can be used for suction or discharge.
  • Branding - FLEXTRAL CP20-300 3” CHEM HOSE 200 PSI MAX WP PG
  • Temperature Range:-40°C to +81°C (-40°F to +180°F)

    • searchVer ficha técnica
    CP22 HD MARINE COMPO CHEM HOSE PG
  • Application:FLEXTRAL CP22 HD MARINE is an heavy duty hose for the transfer of a wide variety of chemicals under suction or pressure. FLEXTRAL CP22 hoses are used for ship to shore and ship to ship, dockside and general shipboard use. All hoses are 100% aromatic resistant, antistatic and can be used for suction or discharge.
  • Branding - FLEXTRAL CP22-1200 12” HD COMPO CARGO & OIL HOSE 200 PSI MAX WP PG
  • Temperature Range:-40°C to +100°C (-40°F to +212°F)

    • searchVer ficha técnica
    CP40 COMPO PTFE CHEM HOSE SS
  • Application: Specifically designed as an universal hose for the transfer of a wide variety of aggressive chemicals under suction or pressure, CP40 PTFE hoses are used in such applications as transfer for rail and road tanker, loading and unloading; storage tank and in-plant use. This universal hose can help eliminate the costly redundancy of inventory to maintain the various hose constructions usually required. Extremely flexible, easy to handle. All hoses are 100% aromatic resistant, antistatic and can be used for suction or discharge.
  • Branding - FLEXTRAL CP40-300 3” COMPO PTFE CHEM HOSE 200 PSI MAX WP SS
  • Temperature Range:-40°C to +120°C (-40°F to +248°F)

    • searchVer ficha técnica

    Any doubts?

    Send us a message and a Fluidtech technical assistant will contact you shortly to provide the support you require.

    Together we will find the solution to your needs!
    help
    shopping_cart
    call

    help Help section

    Any doubts? We will be happy to help you solve your doubts and concerns.


    • account_balanceHome
      Main Page

      Hose Category
    • assignment_turned_inOur Services
      Credit application

      Request for hydrostatic tests

      Request for advice for a quotation

      Request for on-site survey of requirements
    • assignmentQuote
      Request for advice for a quotation


    closeClose Section

    How does the Home Page work?

    Here you can find the quick guide to see how the Home Page works.

    Consult the quick guide here
    Close

    How does the Hose Category Menu work?

    Here you can find the quick guide to see how the Hose Category Menu works.

    Consult the quick guide here
    Cerrar

    How to register for a credit application?

    Here you can find the quick guide to make your Credit Application registration correctly.

    Consult the quick guide here
    Cerrar

    How to register for hydrostatic testing?

    Here you can find the quick guide to make your correct Hydrostatic Test Request registration.

    Consult the quick guide here
    Close

    How to register for a quote request?

    Here you can find the quick guide to make your correct Request for Quotation Advice registration.

    Consult the quick guide here
    Close

    How to register for an on-site survey request?

    Here you can find the quick guide to make your correct registration of the On-Site Requirements Survey Request.

    Consult the quick guide here
    Close

    How to make a quotation?

    Here you can find the quick guide to make a quotation
    Consult the quick guide here

    Close

    In FLUIDTECH SYSTEMS we have the purpose of serving with commitment, responsibility and quality; to be in constant development to be a better team and a better company.

    Fluidtech Systems Transistmica Km. 7.5 Col. Tierra Nueva Coatzacoalcos, Veracruz, México

    Links
    • Services
    • Apply for your credit
    • Quotation
    • Help
    Links
    • Vital voices logo
    • Canacintra logo
    Certifications
    • Duns logo
    • Moodys logo
    • We-Connect logo
    © 2021 All rights reserved
